P190 SS316/0.5 Plate HT with Gasket EPDM for Heat exchanger
Detailed Product Description
1. Equal to APV P190 plate heat exchanger.
2. Plate gasket: NBR / EPDM/FKM
3. Plate material: 316L /304/Ti material/C276/904L
Same as APV P190 gasket plate heat exchanger, can replace original P190 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: Button
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Competitive Advantages Well and High Quality Control
Well and High Quality Control
| Model |
Corrugation Angle |
Corrugation Depth (mm) |
Angle Hole Diameter (mm) |
Angle Hole Center Distance (mm) |
Plate Size (mm) |
Area of Plate (㎡) |
| P190 |
Vertical 120° |
4.6 |
φ336 |
2137*570 |
2544*984 |
1.9 |
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material |
Suitable for fluid |
| Stainless(AISI304,AISI316): |
Clean water, river water, cooking oil, mineral oil |
| Ti,Ti-Pd: |
Sea water, salt water, salt |
| 20Cr,18Ni,6Mo(254SMO): |
Dilute sulfuric acid, dilute salinized water solution, inorganic water solution |
| Ni: |
High temperature, high viscosity caustic soda |
| HASTELLOY: |
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Sealing material: |
adapt temperature |
Suitable for fluid |
| NBR |
-15~+120℃ |
Water, sea water, cooking oil, salt water |
| HNBR |
-15~+140℃ |
High temperature mineral oil, high temperature water |
| EPDM |
-25~+170℃ |
Hot water, water vapor, acid, alkali |
| Viton |
-5~+130℃ |
Acid, alkali, fluid |

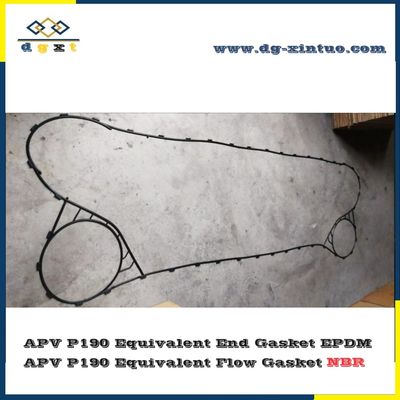

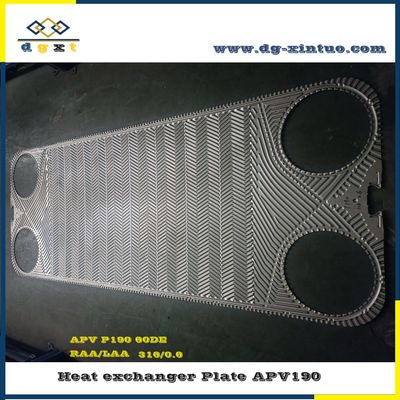

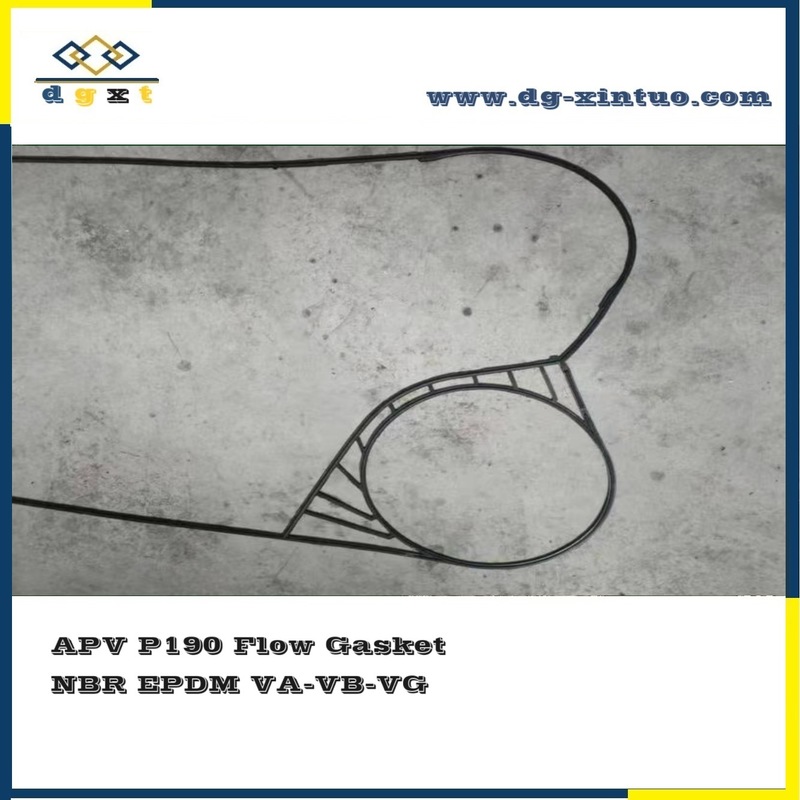

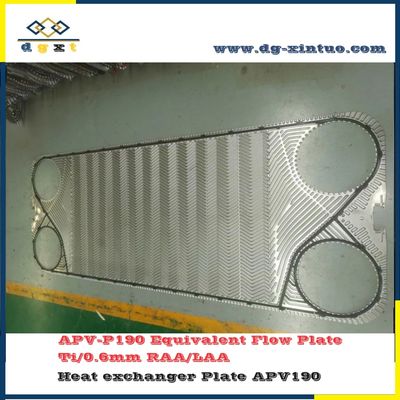

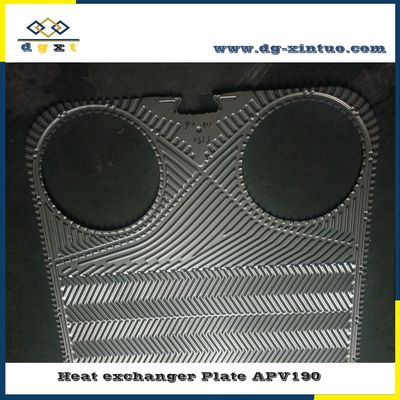

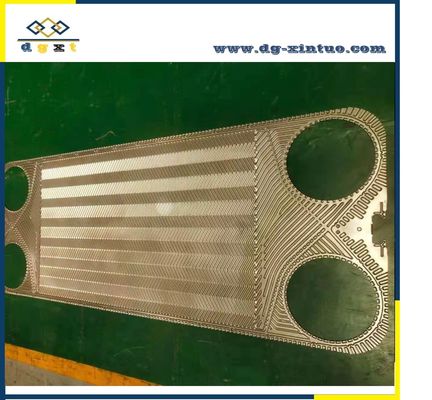

4.Poduct Show:
5.Other models
| APV Heat Exchanger Plate Gasket |
| T4 |
Q030E |
A085 |
M060 |
SR6AG |
B134 |
TR9GN |
| H12 |
Q055E |
A145 |
M092 |
R8GI |
B158 |
TR9GL |
| H12 Water Generator |
Q080E |
J060 |
M107 |
SR9 |
B205 |
K34 |
| H17 |
Q030D |
J092 |
SR2 |
R10 |
P105 |
K55 |
| N25 |
Q055D |
J107 |
SR3 |
R14 |
P190 |
K71 |
| N35 |
Q080D |
J154 |
R5 |
B063 |
TR9AL |
TR9AV |
| N50 |
A055 |
J185 |
SR6GL |
B110 |
TR9AV |
S190 |
| S380 |
B063 |
B110 |
|
|
|
|
6.More Information about spares
