M10MX Titaniumplate,dialognal heat exchanger plate,Channel plate,flow Plate with clip on Gasket NBR for Seawater Heat exchanger
Detailed Product Description
1. Equal to ALFA M10MX plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as ALFA M10 gasket plate heat exchanger, can replace original M10 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: clip on
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Competitive Advantages Well and High Quality Control
Well and High Quality Control
| Model |
Corrugation Angle |
Corrugation Depth (mm) |
Angle Hole Diameter (mm) |
Angle Hole Center Distance (mm) |
Plate Size (mm) |
Area of Plate (㎡) |
| M10B |
60°118° |
2.6 |
φ97 |
719*223 |
874*373 |
0.24 |
| M10M |
57°121° |
4 |
φ98 |
719*223 |
871*371 |
0.24 |
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material |
Suitable for fluid |
| Stainless(AISI304,AISI316): |
Clean water, river water, cooking oil, mineral oil |
| Ti,Ti-Pd: |
Sea water, salt water, salt |
| 20Cr,18Ni,6Mo(254SMO): |
Dilute sulfuric acid, dilute salinized water solution, inorganic water solution |
| Ni: |
High temperature, high viscosity caustic soda |
| HASTELLOY: |
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Sealing material: |
adapt temperature |
Suitable for fluid |
| NBR |
-15~+120℃ |
Water, sea water, cooking oil, salt water |
| HNBR |
-15~+140℃ |
High temperature mineral oil, high temperature water |
| EPDM |
-25~+170℃ |
Hot water, water vapor, acid, alkali |
| Viton |
-5~+130℃ |
Acid, alkali, fluid |

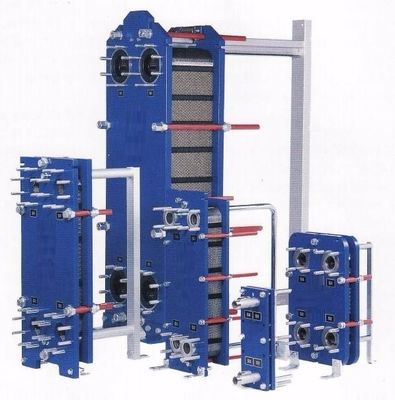

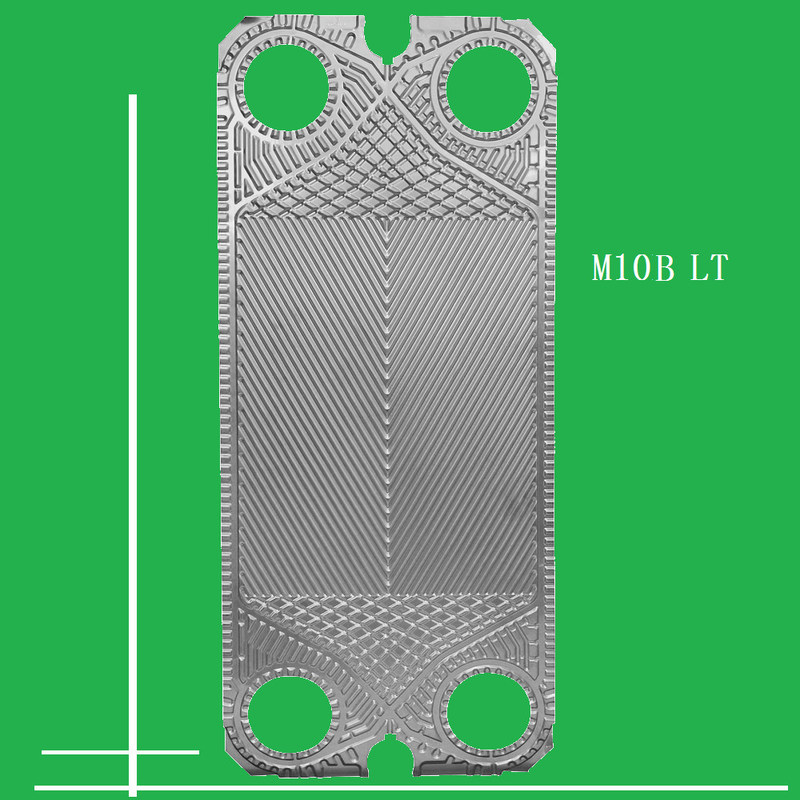

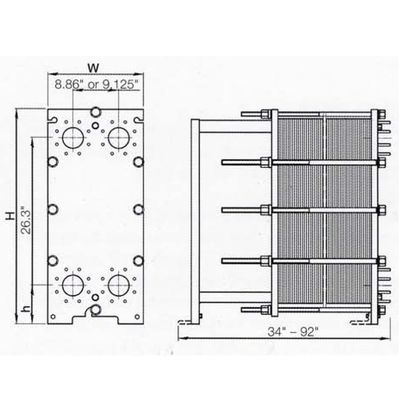

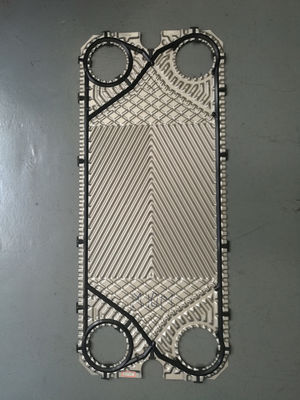

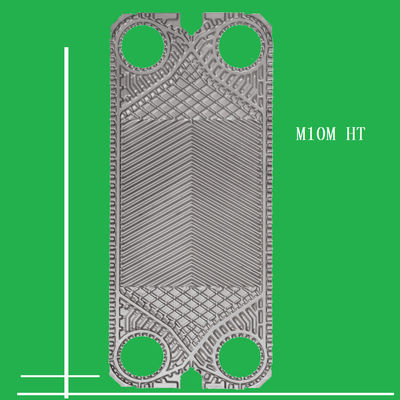

4.Poduct Show:
